imagePROGRAF TX-5430
imagePROGRAF TX-5430
imagePROGRAF TX-5430

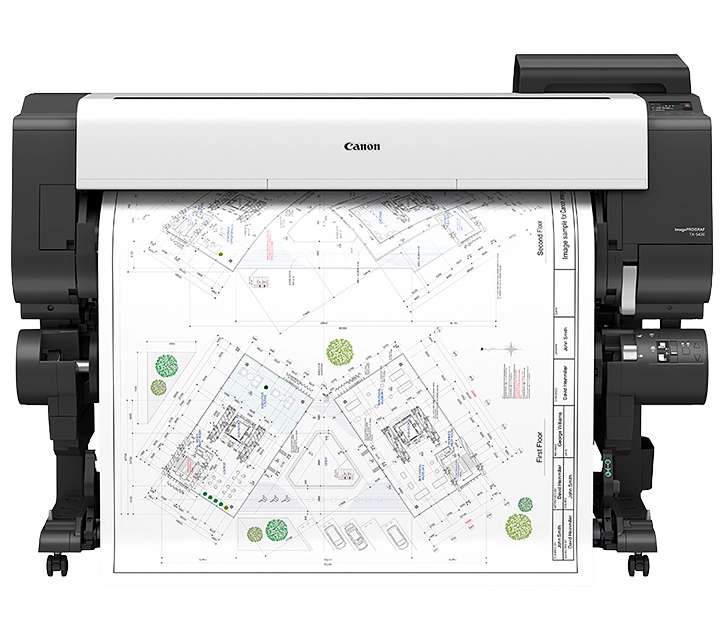

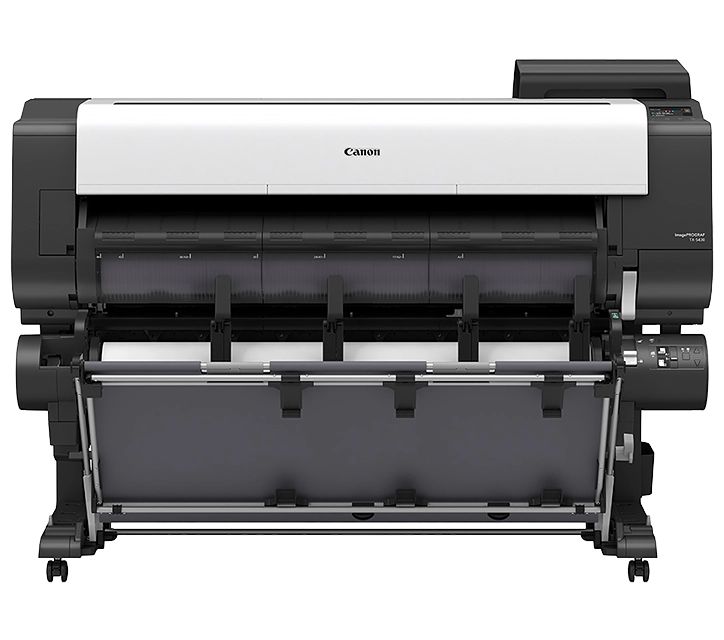

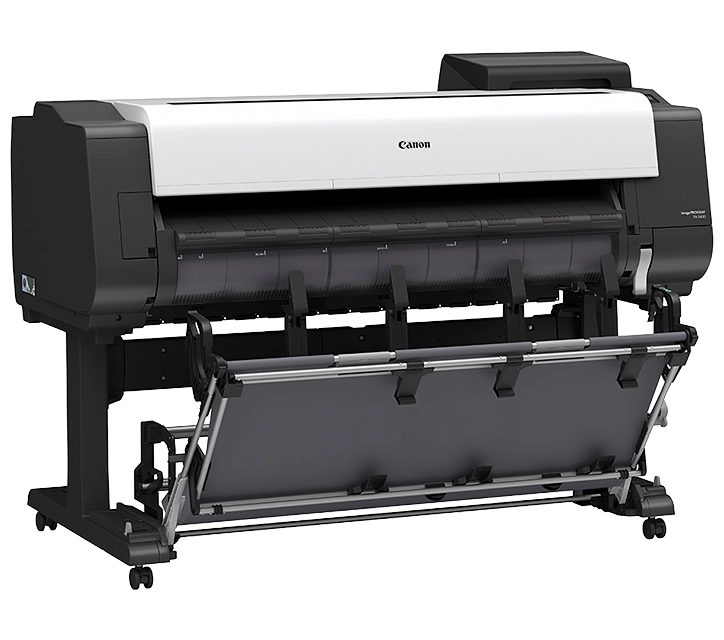

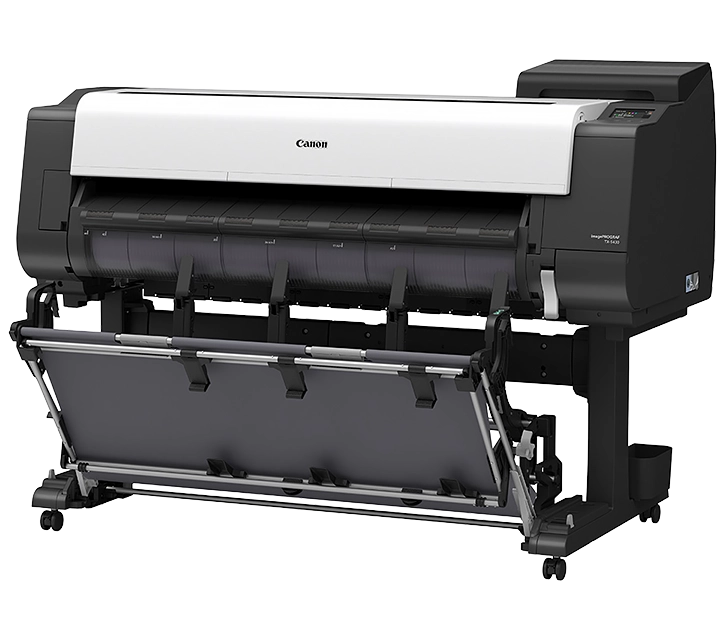

這款 44 吋大圖印表機專為追求高生產力、可靠品質和精簡工作流程的企業而設計。憑藉雙紙捲進紙和出色的媒材處理能力，TX-5430 是列印 CAD 圖紙和海報的理想之選。
促銷訊息
主要功能
產品特色
高列印效率
TX系列大圖印表機透過優化列印資料預處理、媒材切割和媒材傳輸流程，實現了連續列印速度的提升。此外，預先列印作業和列印後台處理也得到了最佳化，從而能夠更快地從待機或睡眠模式啟動並完成首頁列印。
頂尖的生產力
雙紙捲裝置使用戶能夠裝載多達兩捲媒材，從而減少在大批量列印時更換不同媒材類型或尺寸的頻率。全新的堆疊式紙籃有助於整齊地整理輸出文件，而副墨盒系統則允許在印表機繼續列印的同時更換空墨盒，從而最大限度地提高生產效率。
智能捲紙系統
所有型號都可選配先進的智能捲紙系統，該功能可自動進紙、加載和檢測紙張類型，並估算剩餘紙量。加快的紙張加載過程減少了裝載捲紙所需的時間
Technologies
LUCIA TD 顏料墨水
全新的霧面黑墨水可使技術圖線更銳利、清晰度更高。 5色LUCIA TD顏料墨水配方獨特，即使在普通紙張上也能呈現清晰的文字、豐富的色彩和精準的線條，並具有出色的防水性能。
高精密噴頭
配備微米級噴嘴的一體化打印頭，提供卓越的墨水密度和顏色均勻性，而多次打印確保每次打印都保持最高打印質量
L-COA PRO 影像處理器
L-COA PRO 影像處理器能夠處理大量影像數據，在保持卓越打印質量的同時驅動高速打印，實現快速的首張打印時間和連續打印速度。
Workflow Solutions
Direct Print Plus
Job submission tool 支援多種文件類型的批次列印、快速列印功能和作業預設，從而實現高效的大幅面列印工作流程。
Accounting Manager
追蹤墨水和媒材使用情況，以進行成本計算和報告
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
Accessories
Roll Unit: RU-44 (Optional)
High Capacity Stacker: SS-41 (Optional)
2"/3" Roll Holder: RH2-46
相關耗材
墨水/色帶/列印頭
|
產品名稱
|
頁數產量
|
產品類型
|
價格
|
|
Print Head PF-06
|
噴頭
|
||
|
PFI-8110 BK (Black, 160ml)
|
墨水罐
|
||
|
PFI-8110 C (Cyan, 160ml)
|
墨水罐
|
||
|
PFI-8110 Y (Yellow, 160ml)
|
墨水罐
|
||
|
PFI-8111 M (Magenta, 160ml)
|
墨水罐
|
||
|
PFI-8310 BK (Black, 330ml)
|
墨水罐
|
||
|
PFI-8310 C (Cyan, 330ml)
|
墨水罐
|
||
|
PFI-8310 Y (Yellow, 330ml)
|
墨水罐
|
||
|
PFI-8311 M (Magenta, 330ml)
|
墨水罐
|
||
|
PFI-8710 BK (Black, 700ml)
|
墨水罐
|
||
|
PFI-8710 C (Cyan, 700ml)
|
墨水罐
|
||
|
PFI-8710 Y (Yellow, 700ml)
|
墨水罐
|
||
|
PFI-8711 M (Magenta, 700ml)
|
墨水罐
|
||
|
MC-30
|
維護盒
|
規格
Printer
|
Printer type |
5-Colour 44" (1,118 mm) |
|
Number of nozzles |
15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） |
|
Maximum print resolution |
2,400 × 1,200 dpi |
|
Nozzle pitch |
1,200 dpi (2 lines) |
|
Line accuracy*1 |
± 0.1% or less |
|
Minimum ink droplet size |
5 pl |
|
Ink capacity |
Sales ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y) |
|
Ink type |
Pigment ink |
|
Printer language |
SG Raster (Swift Graphic Raster) |
|
Printing solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Canon PRINT (mobile), Canon Print Service (mobile), Free Layout Plus, PosterArtist Windows/Lite/Web |
|
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
|
Standard interfaces (built-in) |
USB A Port: |
|
Memory |
Standard: 128 GB |
|
Storage |
256 GB (encrypted) |
Print speed*3
|
Plain paper |
|
CAD Drawings, A0 |
33 sec [fast (custom Q5)] |
Poster, A0 |
35 sec [fast (custom Q5)] |
Heavyweight Coated Paper HG |
|
Poster, A0 |
1 min 25 sec [fast] |
Glossy Photo Paper HG 170 |
|
Poster, A0 |
2 min 53 sec [fast] |
Media handling
Media feed and output |
|
Roll paper (single) |
Front load, front output |
Cut sheet |
Front load, front output*4 |
Media width (roll / cut sheet) |
152.4 - 1,118 mm |
Media thickness (roll / cut sheet) |
0.07 - 0.8 mm |
Min. printable length |
|
Roll paper |
101.6 mm*5 |
Cut sheet |
203.2 mm |
Max. printable length |
|
Roll paper |
18 m*6 |
Cut sheet |
1.6 m |
Maximum outer roll diameter |
170 mm or less |
Borderless printing width |
152.4 - 1,118 mm |
Margins (recommended area) |
|
Roll paper |
Top: 20 mm, bottom: 3 mm, side: 3 mm |
Cut sheet (others) |
Top: 20 mm, bottom: 20 mm, side: 3 mm |
Margins (printable area) |
|
Roll paper |
Top: 3 mm, bottom: 3 mm, side: 3 mm |
Roll paper (borderless print) |
Top: 0 mm, bottom: 0 mm, side: 0 mm |
Cut sheet (others) |
Top: 3 mm, bottom: 20 mm, side: 3 mm |
Dimensions & weight*7
Dimensions (W × D × H) |
|
Main unit + stand + basket |
1,593 × 1,045 × 1,168 mm (basket open) |
Main unit + roll unit + stand + stacker |
1,593 × 1,188 × 1,168 mm (stacker open) |
Roll unit |
1,577 × 336 × 318 mm |
Weight |
|
Main unit + stand + basket |
119 kg |
Main unit + roll unit + stand + basket |
139 kg |
Main unit + roll unit + stand + stacker |
144 kg |
Roll unit |
20 kg |
Packaged dimensions (W × D × H) |
|
Main unit + stand + basket + pallet |
1,800 × 901 × 1,245 mm |
Main unit + stand + pallet |
1,800 × 901 × 1,137 mm |
Basket |
1,525 × 864 × 612 mm |
Stacker |
1,464 × 906 × 291 mm |
Roll unit |
1,727 × 562 × 461 mm |
Packaged weight |
|
Main unit + stand + basket + pallet |
183 kg |
Main unit + stand + pallet |
173 kg |
Basket |
31 kg |
Stacker |
29 kg |
Roll unit |
33 kg |
Power & operating requirements
|
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing |
Approx. 84 W |
Sleep mode |
Approx. 1.7 W |
Power off |
Approx. 0.1 W |
Operating environment |
|
Temperature |
15 - 30℃ |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*8 |
Operation: Approx. 69 dB |
Acoustic pressure*8 |
Operation: Approx. 51 dB (A) |
Accessories
Roll unit (optional) |
RU-44 |
Stacker (optional) |
SS-41 |
2"/3" Roll holder (optional) |
RH2-46 |
Consumables
Print head |
PF-06 |
Cutter blade |
CT-07 |
Maintenance cartridge |
MC-30 |
Ink tank |
Matte black: PFI-8113 (160 ml) / PFI-8313 (330 ml) / PFI-8713 (700 ml) |
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- For cloth, canvas, tracing paper and translucent matte film media, minimum printable length is 200 mm.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Measured using ISO 7779 standard by using 42 inch plain paper, standard mode and line drawing / text mode.
