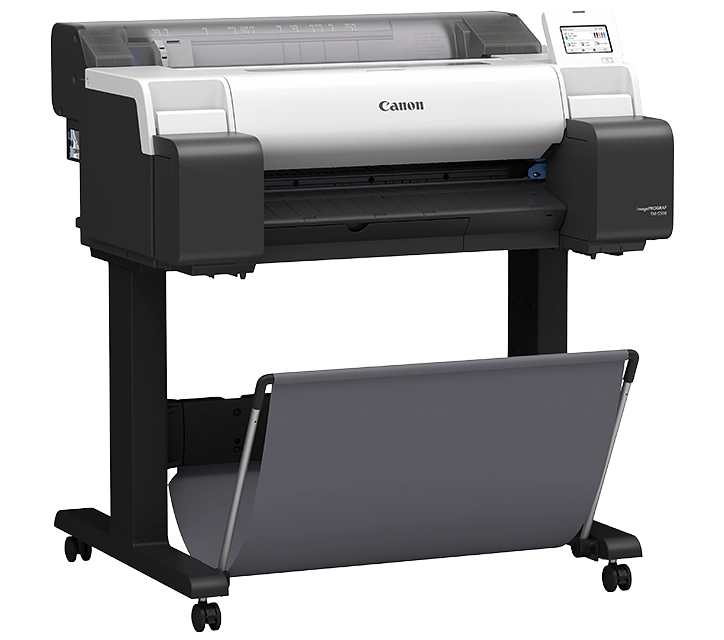

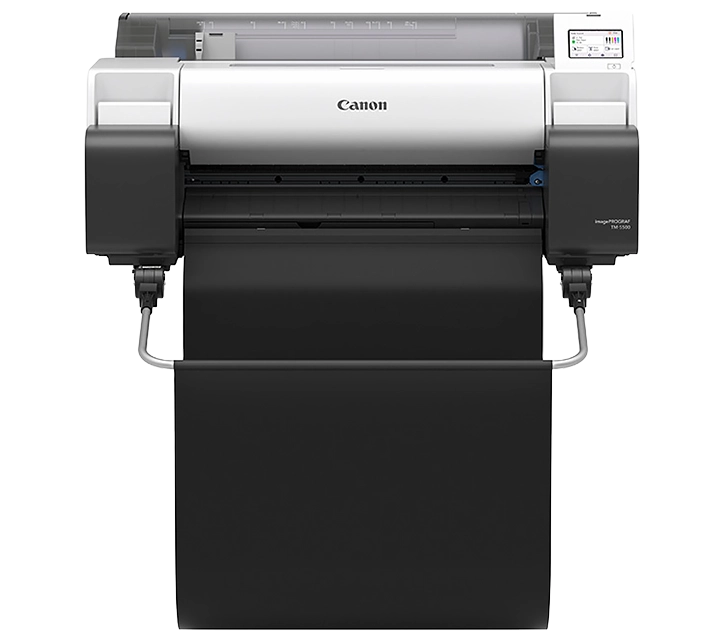

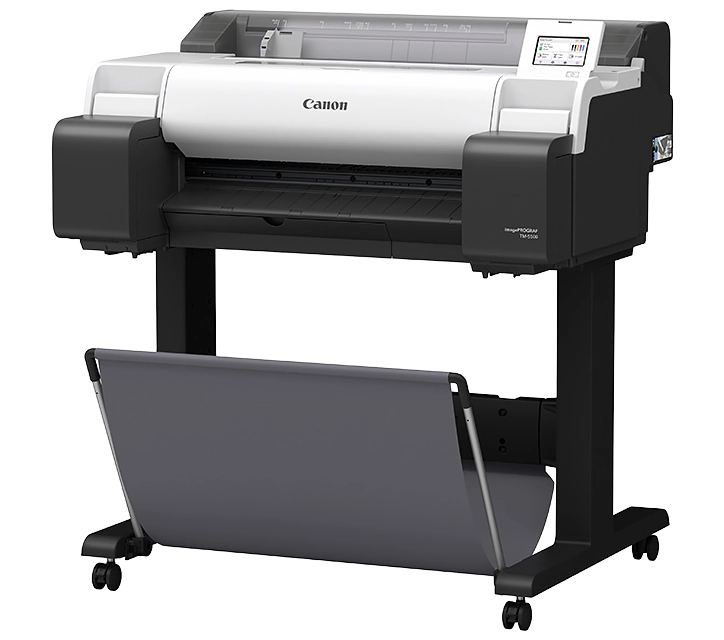

imagePROGRAF TM-5500
imagePROGRAF TM-5500
imagePROGRAF TM-5500
全新 imagePROGRAF 24 吋 TM-5500 大圖印表機，兼具經濟實惠與擴充彈性，專為小型辦公室及居家辦公環境打造。無論是照片、CAD 工程圖或其他多元應用，都能輕鬆滿足各種列印需求。 提供更高的應用彈性與使用便利性，以高品質輸出成果，滿足您的商務需求。
促銷訊息
主要功能
產品特色
線條更清晰銳利
能夠高品質地再現精細的 CAD 線條和文字，並最大限度地減少細線邊緣的滲色，即使在預設模式下也能提供可靠的高速列印，並獲得卓越的列印效果。
生動的海報輸出
影像處理技術增強了一般紙上海報的色彩飽和度，使色彩更深邃，色彩還原度更高，文字對比度更強，可視性更佳。採用全顏料墨水，整體列印品質得到提升。
全正面操作
列印操作將顯著提升效率。平坦的頂部設計便於日常操作，包括捲紙裝載和耗材更換。自動紙張類型偵測功能使用戶能夠輕鬆取得紙張媒材資訊。
Technologies
LUCIA TD 顏料墨水
全新的霧面黑墨水可使技術圖線更銳利、清晰度更高。 5色LUCIA TD顏料墨水配方獨特，即使在普通紙張上也能呈現清晰的文字、豐富的色彩和精準的線條，並具有出色的防水性能
高級精密打印頭
配備微米級噴嘴的全整合式列印頭可提供極佳的墨水密度和色彩均勻性，而多程列印則確保每次列印都能保持最高的列印品質。
L-COA PRO II 圖像處理引擎
L-COA PRO II 高速影像處理引擎透過提供更強大的資料處理能力，實現了從睡眠模式快速啟動以及連續列印，從而提高了整體列印效率。
Workflow Solutions
Accounting Manager
透過打印報告可翻查墨水和介質的使用資料，以便計算成本。
Media Configuration Tool
在打印機的操作面板和打印機驅動程式中管理、更新和處理介質資料。
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
規格
Printer
Printer type |
5-colour 24" (610 mm) |
Number of nozzles |
15,360 nozzles
|
Maximum print resolution |
2,400 × 1,200 dpi |
Nozzle pitch |
1,200 dpi (2 lines) |
Line accuracy*1 |
± 0.1% or less |
Ink capacity |
Sales ink: 55 ml (MBK/BK/C/M/Y) |
Ink type | Pigment ink |
Printer language |
SG Raster (Swift Graphic Raster)
|
Printing solutions |
Direct Print Plus, Free Layout plus, PosterArtist Windows/Web/Lite, Wi-Fi Connection Assistant, Canon PRINT (mobile), Canon Print System (mobile) |
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
Standard interfaces (built-in) |
USB B port:
|
Standard memory |
2 GB |
Hard disk |
- |
Display |
LCD (4.3 inch / 10.9 cm TFT colour) |
Print speed*4
CAD drawing (fast Q5 mode) in A1 |
23 sec |
Poster (standard mode) in A1 |
1 min 45 sec |
Media handling
Media feed and output |
|
Roll paper |
One roll, top load, front output |
Cut sheet |
Top load, front output |
Media width (roll/cut sheet) |
Roll width: 203.2 - 610 mm;
|
Media thickness (roll/cut sheet) |
0.07 - 0.8 mm |
Media core size |
2 inch; 3 inch core (optional) |
Min. Printable length |
|
Roll paper |
203.2 mm |
Cut sheet |
279.4 mm |
Max. Printable length |
|
Roll paper |
18 m*5 |
Cut sheet |
1,600 mm |
Maximum outer roll diameter |
150 mm or less |
Borderless printing |
Supported for roll paper |
Margins (recommended area) |
|
Roll paper (top, bottom, sides) |
20 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
20 mm, 20 mm, 3 mm |
Margins (printable area) |
|
Roll paper (top, bottom, sides) |
3 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
3 mm, 20 mm, 3 mm |
Dimensions & weight
Dimensions (W × D × H) |
|
Main unit |
978 × 720 × 421 mm (operation panel is not tilt up) |
Main unit + printer stand + basket (SD-24) |
978 ×
868 ×
1,041 mm (basket opened) |
Weight *6 |
|
Main unit |
40 kg |
Main unit + printer stand + basket (SD-24) |
51 kg |
Packaged dimensions (W × D × H) |
|
Printer (main unit + pallet) |
1,152 × 913 × 650 mm |
Stand + basket (SD-24) |
1058 × 826 × 270 mm |
| Desktop basket (BU-07)
| 798 ×
301 ×
111 mm
|
Packaged weight *6 |
|
Printer (main unit + pallet) |
73 kg |
Stand + basket (SD-24) |
20 kg |
| Desktop basket (BU-07)
| 2 kg
|
Power & operating requirements
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing*7 |
Approx. 59 W |
Sleep mode*7 |
Approx. 1.6 W |
Power off |
Approx. 0.06 W |
Operating environment |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*8 |
Operation: Approx. 6.0 Bels |
Acoustic pressure*8 |
Operation: Approx. 39 dB |
Accessories
Printer stand (optional) |
SD-24 |
| Desktop basket (optional) | BU-07 |
2"/3" roll holder |
RH2-28 |
Card reader interface for uniFLOW |
RA-02 |
Consumables
Ink tank |
Magenta: PFI-8031 (55 ml) |
Print head |
PF-06 |
| Cutter blade | CT-08 |
Maintenance cartridge |
MC-31 |
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- USB Thumb drive printing is not supported.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Varies according to the OS and application.
- Including roll holder set, excluding print head and ink tanks.
- Using wired LAN.
- Acoustic Power and Pressure are measured using ISO 7779 standard.
