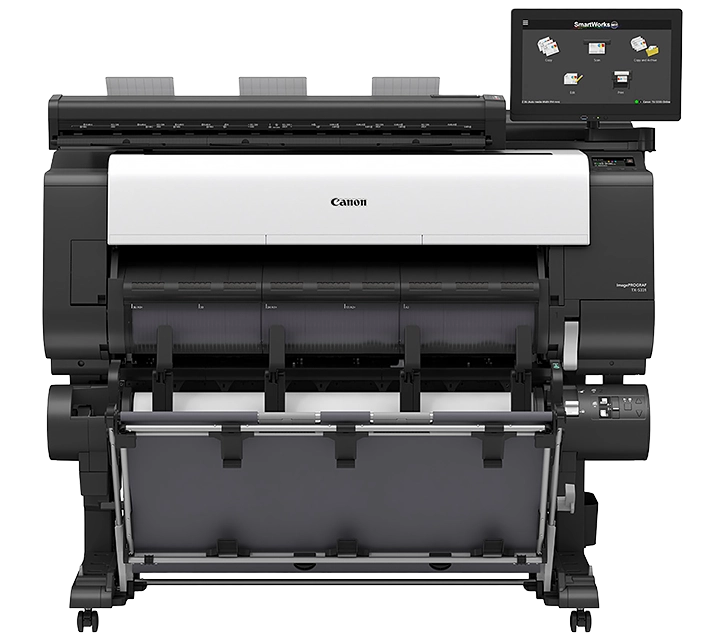

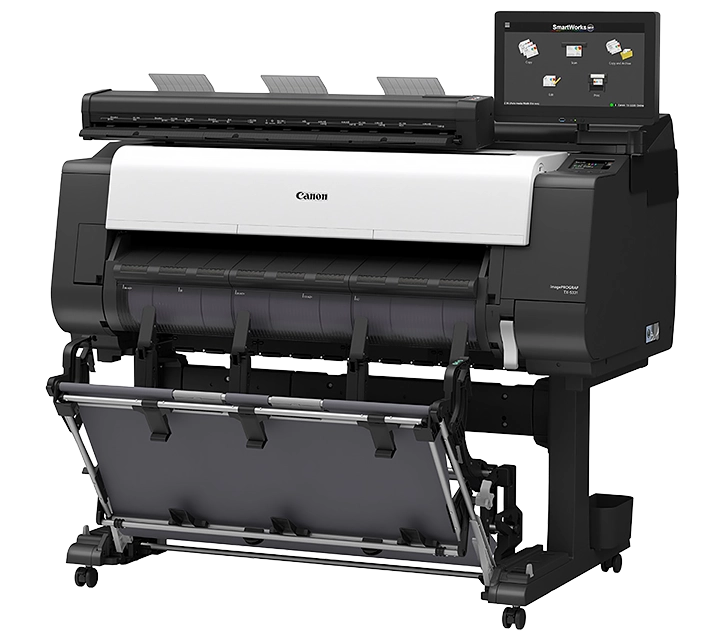

imagePROGRAF TX-5331 MFP Z36
imagePROGRAF TX-5331 MFP Z36
imagePROGRAF TX-5331 MFP Z36
這款 36 吋大圖印表機設計精良，即使在非塗佈紙上也能提供快速列印和卓越的列印品質。它具有許多功能，例如多功能捲筒系統、自動媒材類型檢測、剩餘媒材估算和自訂尺寸無邊距列印，可顯著提升您的工作效率。此外，它還配備掃描儀，支援影印、列印和掃描功能。
促銷訊息
主要功能
產品特色
高列印效率
TX系列印表機透過優化的預先列印操作和列印後台處理，在連續列印過程中實現了更快的吞吐量，從而縮短了從待機或睡眠模式恢復到列印狀態所需的首張列印時間。先進的智慧捲紙裝置可自動送紙、偵測紙張類型並估算剩餘紙張量，從而實現高效的媒體處理。
高效率的掃描工作流程
Z36 掃描器配備 15.6 吋大螢幕，內建預覽和影像編輯工具，可實現直覺的複印和掃描操作。輕鬆預覽、編輯和調整掃描影像，進而提高工作效率和生產力。
新型輸出堆疊藍
新的標準堆疊籃可將 A0 和 A1 普通紙等大幅面列印件整齊地整理好，以便在連續列印過程中輕鬆收集。
Technologies
LUCIA TD 顏料墨水
5色 LUCIA TD 顏料墨水專為在普通紙張上也能產生清晰的文字和準確的線條而設計，並具有出色的耐水性。新增的洋紅色顏料墨水可增強技術圖紙和圖形，使海報質量得到提升，產生更深、更鮮豔的效果。
高精密噴頭
配備微米級噴嘴的一體化打印頭，提供卓越的墨水密度和顏色均勻性，而多次打印確保每次打印都保持最高打印質量
L-COA PRO 影像處理器
L-COA PRO 影像處理器能夠處理大量影像數據，在保持卓越打印質量的同時驅動高速打印，實現快速的首張打印時間和連續打印速度。
Workflow Solutions
The following workflow solutions are designed to help you get the most out of your printer.
Direct Print Plus
Job submission tool 支援多種文件類型的批次列印、快速列印功能和作業預設，從而實現高效的大幅面列印工作流程。
Accounting Manager
追蹤墨水和媒材使用情況，以進行成本計算和報告
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
Accessories

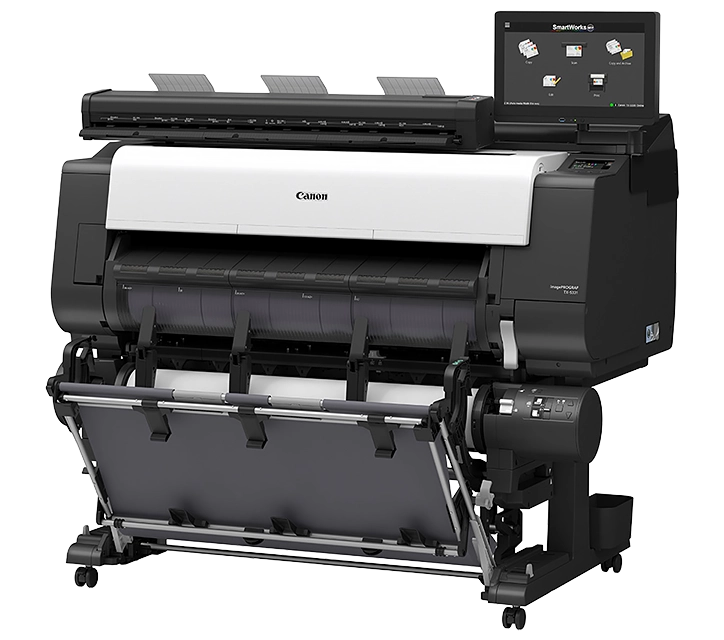

Roll Unit: RU-34 (Optional)
High Capacity Stacker: SS-31 (Optional)
2"/3" Roll Holder: RH2-34
相關耗材
墨水/色帶/列印頭
|
產品名稱
|
頁數產量
|
產品類型
|
價格
|
|
Print Head PF-06
|
噴頭
|
||
|
PFI-8110 BK (Black, 160ml)
|
墨水罐
|
||
|
PFI-8110 C (Cyan, 160ml)
|
墨水罐
|
||
|
PFI-8110 Y (Yellow, 160ml)
|
墨水罐
|
||
|
PFI-8111 M (Magenta, 160ml)
|
墨水罐
|
||
|
PFI-8310 BK (Black, 330ml)
|
墨水罐
|
||
|
PFI-8310 C (Cyan, 330ml)
|
墨水罐
|
||
|
PFI-8310 Y (Yellow, 330ml)
|
墨水罐
|
||
|
PFI-8311 M (Magenta, 330ml)
|
墨水罐
|
||
|
PFI-8710 BK (Black, 700ml)
|
墨水罐
|
||
|
PFI-8710 C (Cyan, 700ml)
|
墨水罐
|
||
|
PFI-8710 Y (Yellow, 700ml)
|
墨水罐
|
||
|
PFI-8711 M (Magenta, 700ml)
|
墨水罐
|
||
|
MC-30
|
維護盒
|
規格
Printer
|
Printer type |
5-colour 36" (914 mm) |
|
Number of nozzles |
15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） |
|
Maximum print resolution |
2,400 × 1,200 dpi |
|
Nozzle pitch |
1,200 dpi (2 lines) |
|
Line accuracy*1 |
± 0.1% or less |
|
Minimum ink droplet size |
5 pl |
|
Ink capacity |
Sales ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y) |
|
Ink type |
Pigment ink |
|
Printer language |
SG Raster (Swift Graphic Raster) |
|
Printing solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Canon PRINT (mobile), Canon Print Service (mobile), Free Layout Plus, PosterArtist Windows/Lite/Web |
|
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
|
Standard interfaces (built-in) |
USB A Port: |
|
Memory |
Standard: 128 GB |
|
Storage |
256 GB (encrypted) |
Print speed*3
|
Plain paper |
|
CAD drawings, A0 |
32 sec [fast (custom Q5)] |
Poster, A0 |
33 sec [fast (custom Q5)] |
Heavyweight coated paper HG |
|
Poster, A0 |
1 min 25 sec [fast] |
Glossy photo paper HG 170 |
|
Poster, A0 |
2 min 53 sec [fast] |
Media handling
Media feed and output |
|
Roll paper (single) |
Front load, front output |
Cut sheet |
Front load, front output*4 |
Media width (roll / cut sheet) |
152.4 - 917 mm |
Media thickness (roll / cut sheet) |
0.07 - 0.8 mm |
Min. Printable length |
|
Roll paper |
101.6 mm*5 |
Cut sheet |
203.2 mm |
Max. Printable length |
|
Roll paper |
18 m*6 |
Cut sheet |
1.6 m |
Maximum outer roll diameter |
170 mm or less |
Borderless printing width |
152.4 - 917 mm |
Margins (recommended area) |
|
Roll paper |
Top: 20 mm, bottom: 3 mm, side: 3 mm |
Cut sheet (others) |
Top: 20 mm, bottom: 20 mm, side: 3 mm |
Margins (printable area) |
|
Roll paper |
Top: 3 mm, bottom: 3 mm, side: 3 mm |
Roll paper (borderless print) |
Top: 0 mm, bottom: 0 mm, side: 0 mm |
Cut sheet (others) |
Top: 3 mm, bottom: 20 mm, side: 3 mm |
Dimensions & weight*7
Dimensions (W × D × H) |
|
Main unit + stand + basket |
1,390 × 1,045 × 1,168 mm (basket opened) |
Main unit + roll unit + stand + stacker |
1,390 × 1,188 × 1,168 mm (stacker opened) |
Roll unit |
1,374 × 336 × 318 mm |
Weight |
|
Main unit + stand + basket |
110 kg |
Main unit + roll unit + stand + basket |
129 kg |
Main unit + roll unit + stand + stacker |
134 kg |
Roll unit |
19 kg |
Packaged dimensions (W × D × H) |
|
Main unit + stand + basket + pallet |
1,598 × 901 × 1,236 mm |
Main unit + stand + pallet |
1,598 × 901 × 1,123 mm |
Stacker |
1,249 × 906 × 291 mm |
Roll unit |
1,524 × 562 × 461 mm |
Packaged weight |
|
Main unit + stand + basket + pallet |
169 kg |
Main unit + stand + pallet |
160 kg |
Basket |
28 kg |
Stacker |
26 kg |
Roll unit |
30 kg |
Power & operating requirements
|
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing |
Approx. 83 W |
Sleep mode |
Approx. 1.7 W |
Power off |
Approx. 0.1 W |
Operating environment |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*8 |
Operation: Approx. 69 dB |
Acoustic pressure*8 |
Operation: Approx. 51 dB (A) |
Accessories
Roll unit (optional) |
RU-34 |
Stacker (optional) |
SS-31 |
2"/3" Roll holder (optional) |
RH2-34 |
Consumables
Print head |
PF-06 |
Cutter blade |
CT-07 |
Maintenance cartridge |
MC-30 |
Ink tank |
Matte black: PFI-8113 (160 ml) / PFI-8313 (330 ml) / PFI-8713 (700 ml) |
Scanner*9
Technology |
Single sensor, full width straight-line CIS with dual LED illumination |
Scan width |
36" (914 mm) |
Min. Scan width |
6" (150 mm) |
Max. Scan length |
|
JPEG/PDF |
8 m |
TIFF |
15.2 m |
Max. Copy speed*10 |
|
200 dpi |
6 ips (colour) / 13 ips (greyscale) |
300 dpi |
4 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Max. Scan speed*10 |
|
200 dpi |
3 ips (colour) / 13 ips (greyscale) |
300 dpi |
2 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Optical resolution |
1,200 dpi |
Max. Document thickness*11 |
1 mm |
Document handling |
Front load, rear output*12 |
System controller |
|
Hard disk |
256 GB (Solid State Drive) |
Memory |
16 GB (SODDR 4) |
Display |
15.6" multi-touch colour display |
Software included |
SmartWorks MFP V6 |
Scan format |
PDF, Multipage PDF, JPEG, TIFF, DWF |
Dimensions (W × D × H)*13 |
1,056 × 251 × 156 mm |
Weight |
|
Scanner |
7.8 kg |
System controller |
2.5 kg |
Power consumption (Scanner) |
|
Operation*14 |
22.7 W (colour) / 23.3 W (greyscale) |
Sleep mode |
0.2 W |
Standby |
12.4 W |
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- For cloth, canvas, tracing paper and translucent matte film media, minimum printable length is 200 mm.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing / text mode.
- Scanner is manufactured by U.K. – based Global Scanning UK Ltd.
- The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times and quoted top speeds will depend on the host performance and are not guaranteed for all media types. Scan times quoted are the maximum for true 200 × 200 dpi image capture.
- Thicker documents must be flexible and the paper return guides removed and may require additional support. Some media should be scanned at reduced speeds. It is not possible to guarantee to be able to scan all media types and sizes.
- To return document to the front, use document return guides.
- Document return guides and paper tray folded.
- Power consumption is measured with scan resolution setting of 200 dpi.
