imagePROGRAF TX-5130 MFP Z36
imagePROGRAF TX-5130 MFP Z36
imagePROGRAF TX-5130 MFP Z36

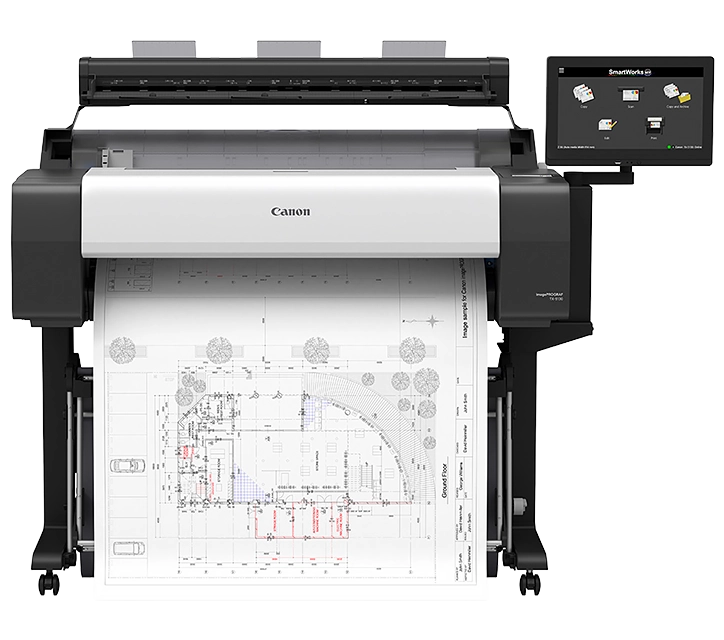

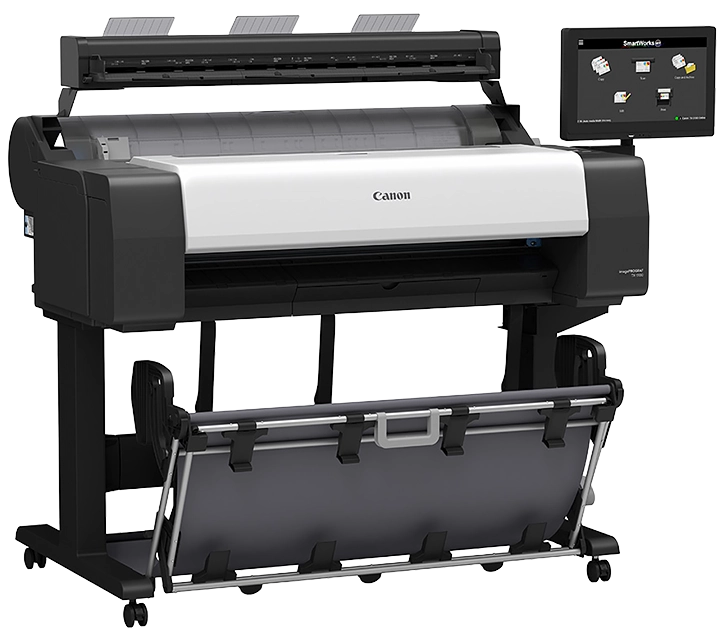

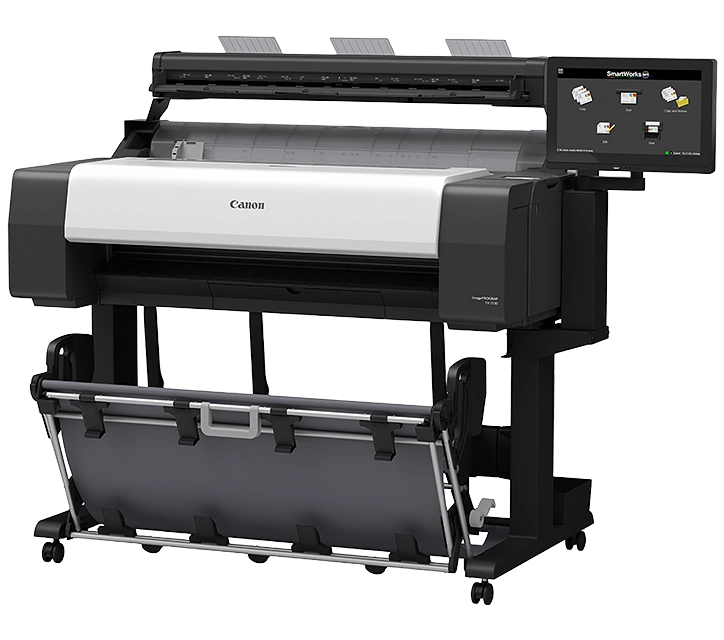

全新 36 吋 imagePROGRAF TX-5130 大圖印表機以其增強的掃描功能和列印處理能力，協助每一次列印工作，呈現高品質的 CAD 圖紙、照片和海報。這款無縫、快速、可靠的列印夥伴將重新定義您的工作效率。它配備功能強大的掃描器和寬大的掃描面板，方便您輕鬆進行影印、列印和掃描。
促銷訊息
主要功能
產品特色
極佳的輸出品質
高品質的精細CAD線條和文字得以完美再現，細線邊緣的滲色現像也降至最低。影像處理技術增強了一般紙張上海報的色彩飽和度，使色彩更深沉、色彩還原度更高、文字對比度更強，從而提升了可視性。
高效率的掃描工作流程

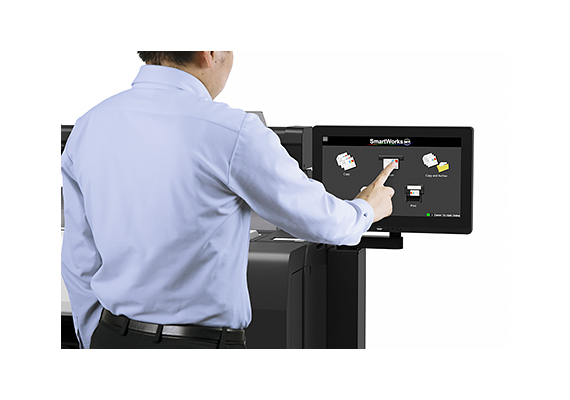

Z36 掃描器配備 15.6 吋大螢幕，內建預覽和影像編輯工具，可實現直覺的複印和掃描操作。輕鬆預覽、編輯和調整掃描影像，進而提高工作效率和生產力。
全正面操作
列印操作將顯著提升效率。全新的平頂設計便於日常操作，包括捲紙裝載、耗材更換以及用於影印和掃描的紙質原稿裝載。自動紙張類型偵測功能使用戶能夠輕鬆取得紙本媒材資訊。
Technologies
LUCIA TD 顏料墨水
全新的霧面黑墨水可使技術圖線更銳利、清晰度更高。 5色LUCIA TD顏料墨水配方獨特，即使在普通紙張上也能呈現清晰的文字、豐富的色彩和精準的線條，並具有出色的防水性能
高級精密打印頭
配備微米級噴嘴的全整合式列印頭可提供極佳的墨水密度和色彩均勻性，而多程列印則確保每次列印都能保持最高的列印品質。
L-COA PRO II 圖像處理引擎
L-COA PRO II 高速影像處理引擎透過提供更強大的資料處理能力，實現了從睡眠模式快速啟動以及連續列印，從而提高了整體列印效率。
Workflow Solutions
Accounting Manager
透過打印報告可翻查墨水和介質的使用資料，以便計算成本。
Media Configuration Tool
在打印機的操作面板和打印機驅動程式中管理、更新和處理介質資料。
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
相關耗材
墨水/色帶/列印頭
|
產品名稱
|
頁數產量
|
產品類型
|
價格
|
|
Print Head PF-06
|
噴頭
|
||
|
PFI-8121 M (Magenta, 130ml)
|
墨水罐
|
||
|
PFI-8321 M (Magenta, 300ml)
|
墨水罐
|
||
|
墨水罐 PFI-8120 藍色墨水匣 (130ml)
|
墨水罐
|
||
|
墨水罐 PFI-8120 黃色墨水匣 (130ml)
|
墨水罐
|
||
|
墨水罐 PFI-8120 黑色墨水匣 (130ml)
|
墨水罐
|
||
|
墨水罐 PFI-8320 藍色墨水匣 (300ml)
|
墨水罐
|
||
|
墨水罐 PFI-8320 黃色墨水匣 (300ml)
|
墨水罐
|
||
|
墨水罐 PFI-8320 黑色墨水匣 (300ml)
|
墨水罐
|
||
|
Maintenance Cartridge MC-31
|
維護盒
|
規格
Printer
Printer type |
5-colour 36" (914 mm) |
Number of nozzles |
15,360 nozzles
|
Maximum print resolution |
2,400 × 1,200 dpi |
Nozzle pitch |
1,200 dpi (2 lines) |
Line accuracy*1 |
± 0.1% or less |
Ink capacity |
Sales ink: 130 ml / 300 ml (MBK/BK/C/M/Y) |
Ink type | Pigment Ink |
Printer language |
SG Raster (Swift Graphic Raster)
|
Printing solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Canon PRINT (mobile), Canon Print Service (mobile), Free Layout Plus, PosterArtist Windows/Lite/Web |
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
Standard interfaces (built-in) |
USB A port:
|
Standard memory |
128 GB (physical memory 2 GB) |
| Storage | 256 GB |
Display |
LCD (4.3 inch/10.9 cm TFT colour) |
Print speed*4
CAD drawing (A1 landscape, fast Q5 mode) |
17 sec |
CAD drawing (A0 portrait, fast Q5 mode) |
32 sec |
Poster (A0 portrait, standard mode) |
2 min 30 sec |
Media handling
Media feed and output |
|
Roll paper |
One roll, top load, front output |
Cut sheet |
Top load, front output |
Media width (roll/cut sheet) |
Roll width: 203.2 - 917 mm;
|
Media thickness (roll/cut sheet) |
0.07 - 0.8 mm |
Media core size |
2 inch/3 inch core |
Min. Printable length |
|
Roll paper |
203.2 mm |
Cut sheet |
279.4 mm |
Max. Printable length |
|
Roll paper |
18 m*5 |
Cut sheet |
1,600 mm |
Maximum outer roll diameter |
150 mm or less |
Borderless printing |
Supported for roll paper |
Margins (recommended area) |
|
Roll paper (top, bottom, sides) |
20 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
20 mm, 20 mm, 3 mm |
Margins (printable area) |
|
Roll paper (top, bottom, sides) |
3 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
3 mm, 20 mm, 3 mm |
Dimensions & weight
Dimensions (W × D × H) |
|
Main unit |
1,285 × 772 × 439 mm (operation panel is not tilt up) |
Main unit + printer stand + basket (SD-35) |
1,285 × 885 × 1,060 mm (operation panel is not tilt up / basket opened) |
Weight *6 |
|
Main unit |
54 kg |
Main unit + printer stand + basket (SD-35) |
68 kg |
Packaged dimensions (W × D × H) |
|
Printer (main unit + stand + basket + pallet) (SD-35) |
1,462 × 1,122 × 799 mm |
Packaged weight *6 |
|
Printer (main unit + stand + basket + pallet) (SD-35) |
116 kg |
Power & operating requirements
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing*7 |
Approx. 69 W |
Sleep mode*7 |
Approx. 1.6 W |
Power off |
0.06 W or less |
Operating environment |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*8 |
Operation: Approx. 6.2 Bels |
Acoustic pressure*8 |
Operation: Approx. 41 dB |
Accessories
Printer stand (optional) |
- |
2"/3" roll holder |
RH2-35 |
Card reader interface for uniFLOW |
RA-02 |
Consumables
Ink tank |
Magenta: PFI-8121(130 ml) / PFI-8321 (300 ml)
|
Print head |
PF-06 |
| Cutter blade | CT-08 |
Maintenance cartridge |
MC-31 |
Scanner*9
Technology |
Single sensor, full width straight-line CIS with dual LED illumination |
Scan width |
36" (914 mm) |
Min. Scan width |
6" (150 mm) |
Max. Scan length |
|
JPEG/PDF |
8 m |
TIFF |
15.2 m |
Max. Copy speed*10 |
|
200 dpi |
6 ips (colour) / 13 ips (greyscale) |
300 dpi |
4 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Max. Scan speed*10 |
|
200 dpi |
3 ips (colour) / 13 ips (greyscale) |
300 dpi |
2 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Optical resolution |
1,200 dpi |
Max. Document thickness*11 |
1 mm |
Document handling |
Front load, rear output*12 |
System controller |
|
Hard disk |
256 GB (Solid State Drive) |
Memory |
16 GB (SODDR 4) |
Display |
15.6" multi-touch colour display |
Software included |
SmartWorks MFP V6 |
Scan format |
PDF, Multipage PDF, JPEG, TIFF, DWF |
Dimensions (W × D × H)*13 |
1,056 × 251 × 156 mm |
Weight |
|
Scanner |
7.8 kg |
System controller |
2.5 kg |
Power consumption (scanner) |
|
Operation*14 |
22.7 W (colour) / 23.3 W (greyscale) |
Sleep mode |
0.2 W |
Standby |
12.4 W |
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- USB Thumb drive printing is not supported.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Varies according to the OS and application.
- Including roll holder set, excluding print head and ink tanks.
- Using wired LAN.
- Acoustic Power and Pressure are measured using ISO 7779 standard.
- Scanner is manufactured by U.K. – based Global Scanning UK Ltd.
- The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times and quoted top speeds will depend on the host performance and are not guaranteed for all media types. Scan times quoted are the maximum for true 200 × 200 dpi image capture.
- Thicker documents must be flexible and the paper return guides removed and may require additional support. Some media should be scanned at reduced speeds. It is not possible to guarantee to be able to scan all media types and sizes.
- To return document to the front, use document return guides.
- Document return guides and paper tray folded.
- Power consumption is measured with scan resolution setting of 200 dpi.
