imagePROGRAF TM-5510M
imagePROGRAF TM-5510M
imagePROGRAF TM-5510M

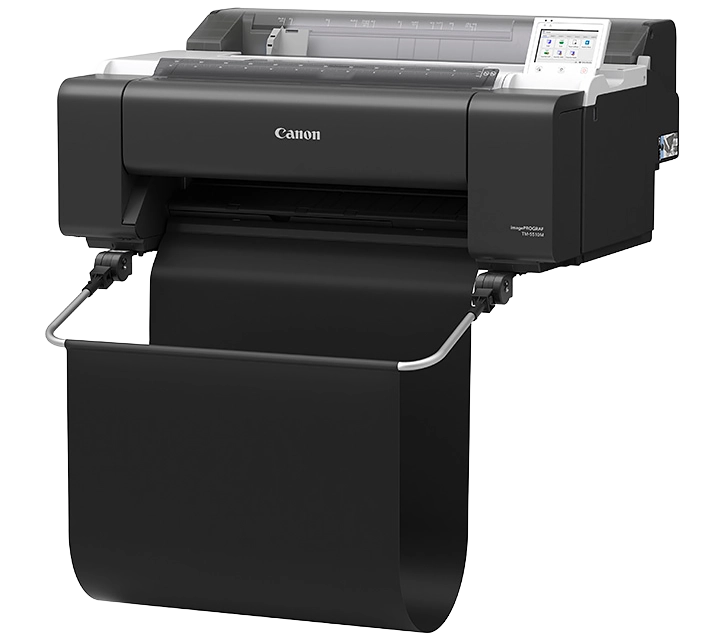

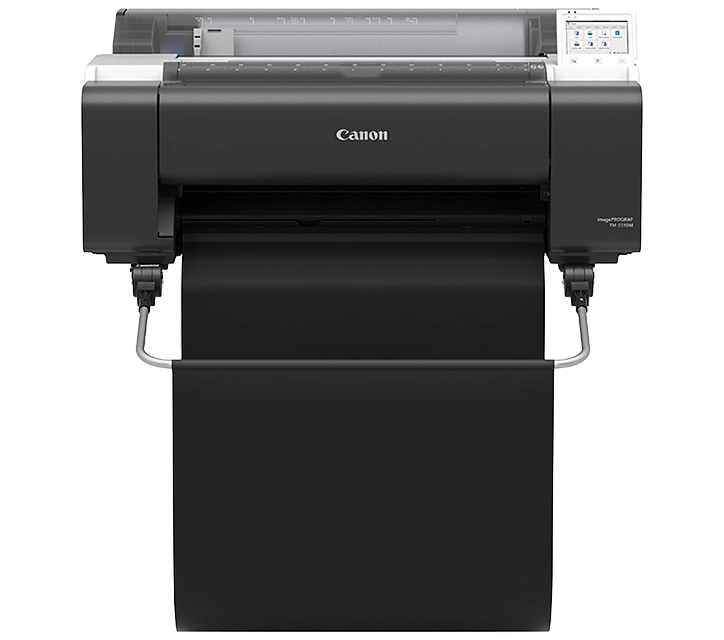

全新 24 吋 imagePROGRAF TM-5510M 大圖印表機憑藉著更卓越的商業列印性能，在照片、海報和 CAD 圖紙的製作方面樹立了列印卓越新標竿。由於採用改進的墨水容量，您可以盡情揮灑創意，呈現生動逼真、品質卓越的印刷作品。內建掃描器支援影印、列印和掃描功能，提供完整的一體化解決方案。
促銷訊息
主要功能
產品特色
極佳的輸出品質
高品質的精細CAD線條和文字得以完美再現，細線邊緣的滲色現像也降至最低。影像處理技術增強了一般紙張上海報的色彩飽和度，使色彩更深沉、色彩還原度更高、文字對比度更強，從而提升了可視性。

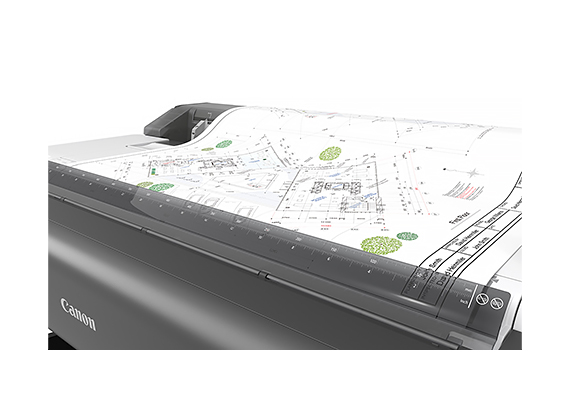

增強掃描品質
全新的內建掃描器能夠提供高品質的影像再現效果，即使是折疊或起皺的圖紙，也能呈現清晰的線條和文字，同時減少摺痕陰影。

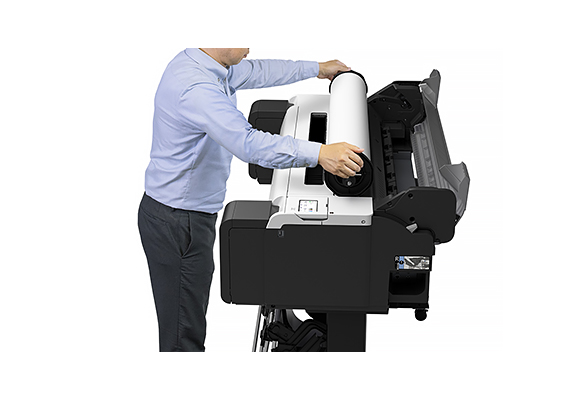

全正面操作
列印操作將顯著提升效率。全新的平頂設計便於日常操作，包括捲紙裝載、耗材更換以及用於影印和掃描的紙質原稿裝載。自動紙張類型偵測功能使用戶能夠輕鬆取得紙本媒體資訊。
Technologies
LUCIA TD 顏料墨水
全新的霧面黑墨水可使技術圖線更銳利、清晰度更高。 5色LUCIA TD顏料墨水配方獨特，即使在普通紙張上也能呈現清晰的文字、豐富的色彩和精準的線條，並具有出色的防水性能
高級精密打印頭
配備微米級噴嘴的全整合式列印頭可提供極佳的墨水密度和色彩均勻性，而多程列印則確保每次列印都能保持最高的列印品質。
L-COA PRO II 圖像處理引擎
L-COA PRO II 高速影像處理引擎透過提供更強大的資料處理能力，實現了從睡眠模式快速啟動以及連續列印，從而提高了整體列印效率。
Workflow Solutions
Accounting Manager
透過打印報告可翻查墨水和介質的使用資料，以便計算成本。
Media Configuration Tool
在打印機的操作面板和打印機驅動程式中管理、更新和處理介質資料。
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
相關耗材
墨水/色帶/列印頭
|
產品名稱
|
頁數產量
|
產品類型
|
價格
|
|
Print Head PF-06
|
噴頭
|
||
|
PFI-8121 M (Magenta, 130ml)
|
墨水罐
|
||
|
PFI-8321 M (Magenta, 300ml)
|
墨水罐
|
||
|
墨水罐 PFI-8120 藍色墨水匣 (130ml)
|
墨水罐
|
||
|
墨水罐 PFI-8120 黃色墨水匣 (130ml)
|
墨水罐
|
||
|
墨水罐 PFI-8120 黑色墨水匣 (130ml)
|
墨水罐
|
||
|
墨水罐 PFI-8320 藍色墨水匣 (300ml)
|
墨水罐
|
||
|
墨水罐 PFI-8320 黃色墨水匣 (300ml)
|
墨水罐
|
||
|
墨水罐 PFI-8320 黑色墨水匣 (300ml)
|
墨水罐
|
||
|
Maintenance Cartridge MC-31
|
維護盒
|
規格
Printer
Printer type |
5-colour 24" (610 mm) |
Number of nozzles |
15,360 nozzles
|
Maximum print resolution |
2,400 × 1,200 dpi |
Nozzle pitch |
1,200 dpi (2 lines) |
Line accuracy*1 |
± 0.1% or less |
Ink capacity |
Sales ink: 130 ml / 300 ml (MBK/BK/C/M/Y) |
Ink type | Pigment ink |
Printer language |
SG Raster (Swift Graphic Raster)
|
Printing solutions |
Direct Print Plus, Free Layout plus, PosterArtist Windows/Web/Lite, Wi-Fi Connection Assistant, Canon PRINT (mobile), Canon Print System (mobile) |
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
Standard interfaces (built-in) |
USB A port: |
Standard memory |
6 GB |
Hard disk |
- |
Display |
LCD (5.0 inch / 12.7 cm TFT colour) |
Print speed*5
CAD drawing (A1 portrait, fast Q5 mode) |
20 sec |
Poster (A1 portrait, standard mode) |
1 min 21 sec |
Media handling
Media feed and output |
|
Roll paper |
One roll, top load, front output |
Cut sheet |
Top load, front output |
Media width (roll/cut sheet) |
Roll width: 203.2 - 610 mm;
|
Media thickness (roll/cut sheet) |
0.07 - 0.8 mm |
Media core size |
2 inch / 3 inch core |
Min. Printable length |
|
Roll paper |
203.2 mm |
Cut sheet |
279.4 mm |
Max. Printable length |
|
Roll paper |
18 m*6 |
Cut sheet |
1,600 mm |
Maximum outer roll diameter |
150 mm or less |
Borderless printing |
Supported for roll paper |
Margins (recommended area) |
|
Roll paper (top, bottom, sides) |
20 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
20 mm, 20 mm, 3 mm |
Margins (printable area) |
|
Roll paper (top, bottom, sides) |
3 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
3 mm, 20 mm, 3 mm |
Dimensions & weight
Dimensions (W × D × H) |
|
Main unit |
978 × 720 × 421 mm (operation panel is not tilt up) |

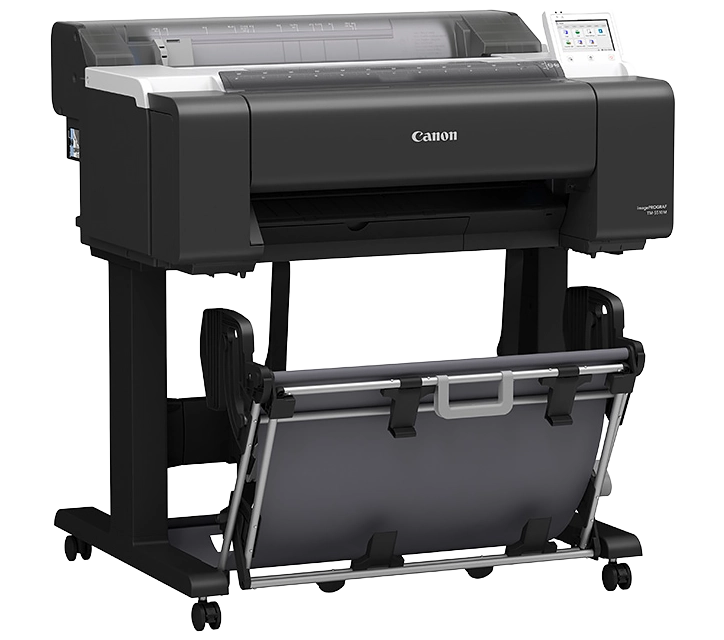

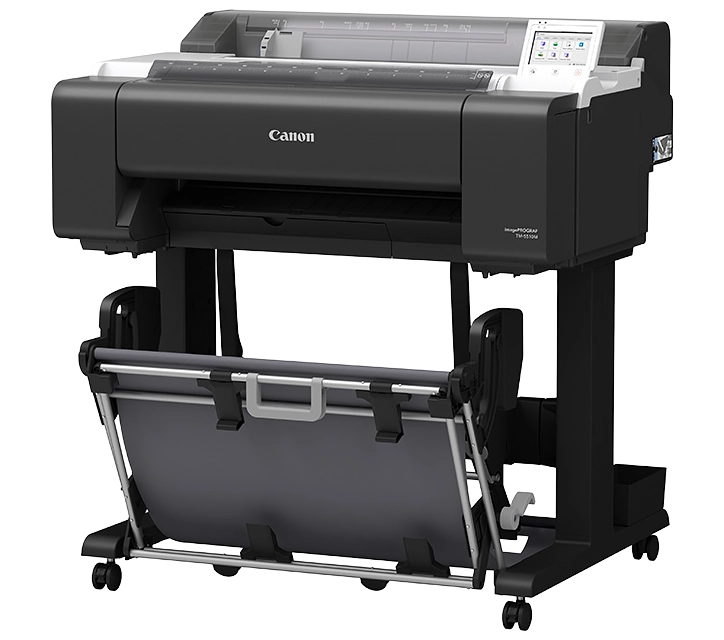

Main unit + printer stand + basket (SD-26) |
978 × 885 × 1,041 mm (basket opened) |
Weight *7 |
|
Main unit |
51 kg |
Main unit + printer stand + basket (SD-26) |
64 kg |
Packaged dimensions (W × D × H) |
|
Printer (main unit with stand and pallet) (SD-26) |
1,152 × 913 × 914 mm |
Packaged weight *7 |
|
Printer (main unit with stand and pallet) (SD-26) |
105 kg |
Power & operating requirements
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing*8 |
Approx. 70 W |
Sleep mode*8 |
Approx. 1.6 W |
Power off |
Approx. 0.06 W |
Operating environment |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*9 |
Operation: Approx. 6.2 Bels |
Acoustic pressure*9 |
Operation: Approx. 41 dB |
Accessories
Printer stand (optional) |
SD-26 |
| Desktop basket (optional) | BU-07 |
2"/3" roll holder |
RH2-28 |
Card reader interface for uniFLOW |
RA-02 |
Consumables
Ink tank |
Magenta: PFI-8121 (130 ml) / PFI-8321 (300 ml)
|
Print head |
PF-06 |
| Cutter blade | CT-08 |
Maintenance cartridge |
MC-31 |
Scanner
Scan technology |
CIS |
Optical resolution*10 |
600 dpi × 600 dpi |
Scan width |
24" / 610 mm |
Minimum scan width |
6" / 153 mm |
Maximum scan length |
|
| JPEG
| 8,304 mm (200 dpi) / 5,536 mm (300 dpi) / 2,768 mm (600 dpi)
|
| PDF
| 5,080 mm (200 dpi) / 5,080 mm (300 dpi) / 2,768 mm (600 dpi)
|
Document thickness*11 |
Min: 0.07 mm |
| Scan speed (200 dpi)
| Colour: 5 ips / 127 mm per sec
Grayscale: 10 ips / 254 mm per sec |
| Scan resolution
| 200 / 300 / 600 dpi
|
| Scan format
| USB memory (FAT16, FAT32, exFAT), Email, SMB
|
| File format
| JPEG, PDF
|
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- USB Thumb drive printing is not supported.
- Scan to USB only, USB media print not supported.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Varies according to the OS and application.
- Including roll holder set, excluding print head and ink tanks.
- Using wired LAN.
- Acoustic Power and Pressure are measured using ISO 7779 standard.
- Optical resolution is based on the ISO14473 standard and represents the maximum sampling rate for scanning documents.
- The use of a carrier sheet is recommended for thin and thick media. Please refer to the user manual for details.
