How to Connect Telephone Cables (FAX-L380)

Solution

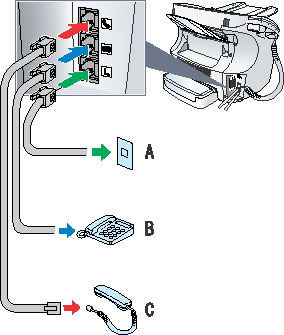

    Connect the telephone line to the jack on the left side of the machine:


    (A): Connect the supplied telephone cable. Connect the other end of the cable to a wall telephone jack.
    (B): Connect an extension phone or answering machine.
    (C): Connect the optional handset.
